Automotive spray painting rooms have high requirements for air cleanliness. Dust, fibers and particles in the air may adhere to the paint surface, causing coating defects such as particles and shrinkage holes. Therefore, the reasonable configuration of primary-efficiency, medium-efficiency and high-efficiency filters is an important measure to control the air quality in the spray paint room.
1. Why does the automotive spray paint room need multi-stage filtration?

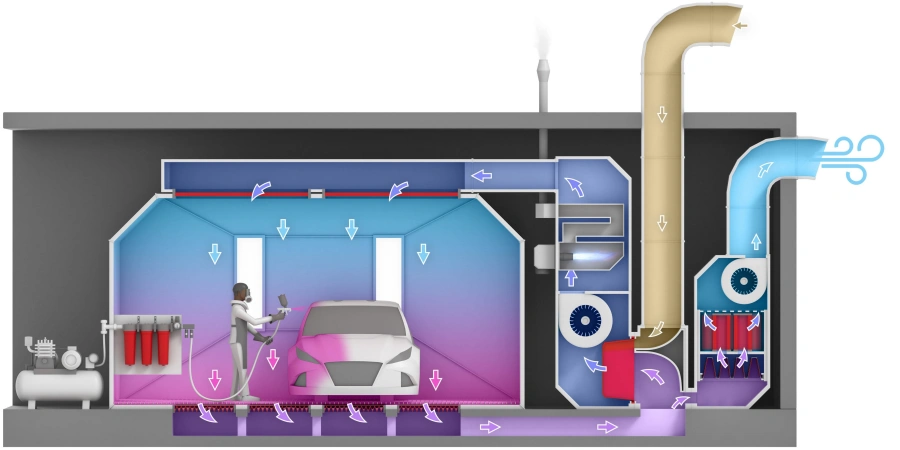

The air filtration in the spray paint room usually adopts a step-by-step filtration method. The front-stage filter intercepts larger particles and reduces the load on the back-end filter; medium-efficiency filter further removes fine particles; for areas with higher requirements for paint surface quality, high-efficiency filters can be configured according to the actual process.
Multi-stage filtration can not only improve air cleanliness, but also extend the service life of the post-stage filter.
2. How to choose the primary filter?
Primary filter Usually installed at the fresh air inlet or the front of the air conditioning box, it is mainly used to filter larger particles such as dust, hair, and fibers.
When choosing a primary filter for a car spray booth, you should focus on:
Filter level
Rated air volume
Initial resistance
Dust holding capacity
Moisture resistance of filter material
Filter size
For environments with high dust content in outdoor fresh air, priority should be given to products with better dust holding capacity to avoid premature clogging of the primary filter.
3. How to choose a medium-efficiency filter?
Medium-efficiency filters are usually used as the second-stage filtration after primary filtration to further reduce the risk of fine particles entering the spray painting area.
Filtration efficiency, rated air volume, initial resistance and service life should be comprehensively considered when selecting. For automobile spray painting systems that run for a long time, you should avoid choosing products with too high initial resistance, otherwise the energy consumption of the fan may increase.
If there is oil mist or other special pollutants in the spray booth, filter materials with corresponding resistance properties need to be selected based on actual working conditions.
4. How to choose a high-efficiency filter?
High-efficiency filters are mainly used in painting areas that require high air cleanliness. It is usually used as an end filter device and is installed at the high-efficiency air supply unit or at the end of the air supply.
When purchasing, you should clarify:
Filtration level, rated air volume, initial resistance, size, filter material, sealing method and testing standards.
High-efficiency filters are not required for all spray paint booths and should be determined based on the spraying process, paint surface quality requirements and cleanliness goals.
5. How to combine different filtering levels?
Automotive spray paint rooms can use different filtration combinations according to the actual process:
Ordinary spray painting area:
Primary effect + medium effect filtration
Area with higher requirements for paint surface cleanliness:
Primary effect + medium effect + high efficiency filtration
High clean painting area:
Use multi-stage pre-filtration according to process requirements, and configure high-efficiency filtration equipment such as HEPA at the end.
The specific configuration should be determined based on the design air volume, cleanliness target and equipment structure, and cannot simply pursue a higher filtration level.
6. Focus on filter resistance
After long-term operation, the paint spray room filter will gradually accumulate dust and the resistance will continue to increase.
If the filter resistance is too high, it may result in:
Air supply volume decreases
Fan energy consumption increases
Indoor pressure changes
Air flow organization Abnormal
The spray quality is affected
Therefore, when selecting, the filtration efficiency, initial resistance, dust holding capacity and service life should be comprehensively compared, and whether the filter needs maintenance or replacement should be judged in a timely manner through pressure difference monitoring.
7. Pay attention to the sealing performance of the filter
For high-clean spraying areas, even if the filter itself has high filtration efficiency, if the installation is poorly sealed, bypass leakage may occur.
Therefore, when purchasing high-efficiency filters, you should also confirm the frame, sealing strips, installation structure and leak detection requirements to ensure reliable cooperation between the filter and the air supply system.
8. What parameters need to be provided when purchasing?
In order to avoid filter selection errors, it is recommended to provide the supplier with:
Filter type, size, design air volume, filtration grade, initial resistance, filter material, frame material, sealing method, working environment, installation method and testing requirements.
If you are replacing the original filter, it is best to provide the original product model, on-site photos or installation drawings.
Conclusion
The selection of filters for automobile spray booths should follow the principle of "step-by-step filtration, reasonable matching, control of resistance, and ensuring cleanliness"**. The primary filter is responsible for front-end protection, the medium-efficiency filter further reduces the particle load, and the high-efficiency filter is used in the end area that requires higher cleanliness. Reasonable configuration can take into account paint quality, equipment operation efficiency and filter service life.
For projects that require car spray booth air filter selection, customization and bulk purchase, Jiangsu Yueboyang Purification Equipment Co., Ltd. can make technical selections based on the design air volume, filtration level, equipment size and painting process of the spray paint room, and provide products such as primary-efficiency, medium-efficiency, high-efficiency, HEPA and activated carbon filters. It can also be equipped with HVAC dampers, air filtration equipment and clean air supply products to provide complete air filtration product support for automotive spray workshops.
