Pharmaceutical production environments place extremely high requirements on air cleanliness and pollution control. During the production process of active pharmaceutical ingredients (API), vaccines, biological products and sterile pharmaceuticals, particulate matter, microorganisms and harmful pollutants in the air must be effectively controlled.
During the traditional air filter replacement process, the contaminated filter may be exposed to maintenance personnel and the surrounding environment, increasing the risk of contamination transmission.
Bag-in-bag-out filter box (Bag-In-Bag-Out, referred to as BIBO) is a safety filtration equipment specially used in high-risk environments. It uses a closed bag replacement method to achieve full isolation during filter removal and installation.
Why does the pharmaceutical industry need bag-in-bag-out filter boxes?
There are a large number of application scenarios that require strict pollution control in the pharmaceutical production process, including:
Sterile pharmaceutical production
Vaccine manufacturing
Biopharmaceutical laboratory
API production (API)
Highly active drug production
During long-term operation, HEPA filters will continuously capture particles, microorganisms and pollutants in the air. When the filter reaches the end of its service life and needs to be replaced, contaminated filter elements may become a potential source of risk.
BIBO filter box can effectively solve this problem:
Avoid personnel from direct contact with contaminated filters
Protect the safety of maintenance personnel
Reduce the risk of cross-contamination
Ensure the safety of the clean room maintenance process
Working principle of bag-in-bag-out filter box
The BIBO system adopts a continuous sealed bag structure to achieve safe replacement of filters.
The basic replacement process is as follows:
Enclose the contaminated filter in a special replacement bag;
Remove the old filter in a sealed state;
Install a new filter through the clean side;
Seal the waste filter bag and remove it safely.
The entire process avoids direct exposure of contaminants, so that the filter replacement process is always under control.

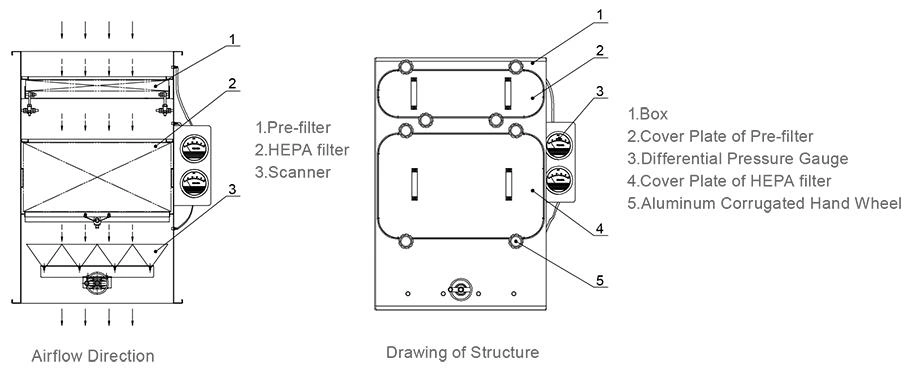

Main components of the bag-in-bag-out filter box
A complete BIBO filtration system for the pharmaceutical industry usually includes the following parts:
Filter box structure
The filter box is usually made of stainless steel or corrosion-resistant materials.
Main features:
High air-tight design
Easy-to-clean surface
Sturdy and durable structure
Low leakage performance
These features can help the clean room maintain stable environmental conditions.
HEPA or ULPA high efficiency filter
BIBO filter box is usually equipped with high efficiency filter.
Common filtration configurations include:
HEPA filter
ULPA filter
Chemical filtration module
Can effectively remove:
Airborne particles
Microorganisms
Fine pollutants
Hazardous gas components
Bag safety replacement system
The continuous bag replacement structure is the core safety design of the BIBO system.
Their main functions:
Achieve safe filter replacement
Protect operators
Isolate contaminated areas
Control the waste treatment process
Application of BIBO filter boxes in the pharmaceutical industry
Bag-in-bag-out filter boxes are widely used in pharmaceuticals, biotechnology and high-protection production environments.
Aseptic drug production
Aseptic drug manufacturing has extremely high requirements for air cleanliness.
The BIBO system can help achieve:
Meet clean room grade requirements
Control microbial contamination
Improve maintenance safety
Vaccine and biological product production
The biopharmaceutical process involves sensitive substances and has strict environmental control and biosafety requirements.
The BIBO filtration system can avoid pollution leakage during filter maintenance through safety isolation design.
Production of highly active drugs
Some pharmaceutical ingredients have high activity or potential risks.
The BIBO system can effectively protect:
Operators
Production environment
Waste filter treatment process

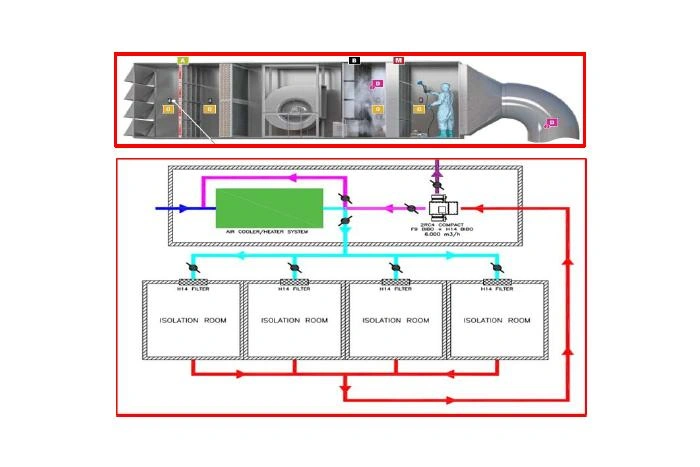

Biosafety laboratory
BIBO filter box is also used in:
BSL laboratory
Biological research facility
High-level protection area
Used to ensure exhaust filtration safety and pollution control.
How does the pharmaceutical industry choose a suitable BIBO filter box?
When choosing a BIBO filtration system, you need to consider the following factors:
Filtration efficiency requirements
Different pharmaceutical processes have different requirements for air filtration levels.
Common configurations include:
HEPA H13/H14 filter
ULPA filter
Chemical filtration module
Box material selection
Commonly used materials in the pharmaceutical industry:
304 stainless steel
316L stainless steel
Materials required:
Corrosion resistance
Easy cleaning performance
Long-term stability
Air volume parameters
The size of the filter box needs to be matched according to the actual air volume demand.
Main considerations:
Handling air volume
Initial resistance
Filter size
Working environment conditions
Sealing and safety performance
High-quality BIBO filter boxes should have:
Reliable sealing structure
Low leakage performance
Safe bag changing design
Convenient maintenance method
