Activated Carbon Panel Filter

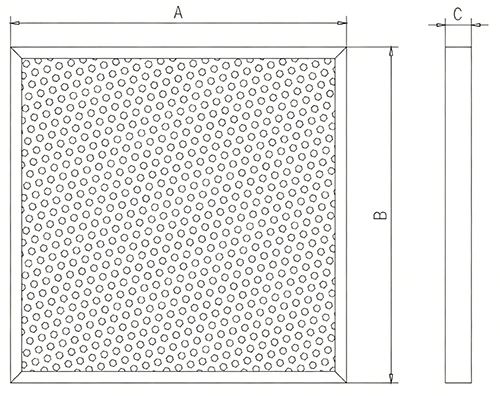

Dimensional diagram:

Why Choose an Activated Carbon Panel Filter?

Efficient Odor Removal

With its highly porous structure and large specific surface area, activated carbon effectively adsorbs odors, smoke, volatile organic compounds (VOCs), and other gaseous contaminants from the air. It is suitable for HVAC and industrial ventilation systems requiring odor control and gaseous pollutant removal.

Improved Air Quality

By adsorbing organic gases, odors, and certain harmful gaseous contaminants, the filter helps reduce airborne pollutant concentrations. When combined with pre-filters, medium-efficiency filters, or HEPA filters, it provides integrated filtration of both particulate and gaseous contaminants, improving overall air purification performance.

Low Pressure Drop Design

The filter media structure and airflow path are optimized to provide sufficient contact between contaminated air and activated carbon while maintaining a low operating resistance. The low pressure drop helps reduce additional fan load, making the filter suitable for continuously operating AHUs, fresh air units, and ventilation systems.

Compact Structure

The panel design can be manufactured in different thicknesses to accommodate limited installation space while providing effective activated carbon adsorption. It is particularly suitable for AHUs, fresh air units, filter housings, and other air handling equipment with limited internal space.

Easy Installation and Maintenance

The standardized panel structure allows easy installation in compatible filter frames and air handling equipment. Dimensions, thickness, and frame materials can be customized to fit existing systems, making the filter suitable for both new installations and replacement projects.

Multiple Activated Carbon Options

Granular activated carbon, honeycomb activated carbon, activated carbon fiber, or impregnated activated carbon can be selected according to the pollutant type, concentration, airflow rate, and operating environment. For specific acidic, alkaline, or other chemical gases, suitable impregnated activated carbon media can be selected for more targeted adsorption.

Key Features

• High adsorption capacity

• Effective VOC removal

• Removal of odors and harmful gases

• Low operating resistance

• Strong and durable construction

• Easy installation and replacement

• Suitable for various air handling systems

• OEM/ODM customization available

Typical Applications

HVAC Air Handling Systems

Used in fresh air and air-conditioning systems in office buildings, shopping malls, hotels, and public buildings to improve indoor air quality.

Hospitals and Healthcare Facilities

Adsorbs odors and certain harmful gases to help improve air quality in healthcare environments.

Pharmaceutical Industry

Used in air purification systems for pharmaceutical production areas and auxiliary facilities.

Laboratories and Research Facilities

Suitable for exhaust air purification systems in chemical laboratories, biological laboratories, and testing facilities.

Food and Beverage Industry

Helps remove odors generated during production processes and improve the working environment.

Industrial Exhaust Air Treatment

Used for exhaust air purification in painting workshops, printing facilities, electronics manufacturing plants, and other industrial environments.

Product Advantages

Excellent Gas Adsorption Performance

High-performance activated carbon with a highly porous structure and large specific surface area effectively adsorbs odors, VOCs, and various gaseous contaminants. Under appropriate airflow velocity and pollutant concentration conditions, it provides stable gas purification performance.

Multiple Media Options

Granular activated carbon, honeycomb activated carbon, activated carbon fiber, and impregnated activated carbon are available. The media can be selected according to pollutant composition, concentration, and treatment requirements to meet the air purification needs of commercial buildings, laboratories, and industrial facilities.

Flexible Customization

Filter length, width, thickness, frame material, and activated carbon media can be customized. The filter structure can also be adapted according to the design airflow and available installation space. It is suitable for new air handling systems as well as replacement applications in existing AHUs, fresh air units, and filter housings.

Reduced System Maintenance Costs

Properly configured activated carbon filters help reduce the impact of gaseous contaminants on downstream air handling equipment and the surrounding environment. When used with upstream particulate filters, dust accumulation on the activated carbon can also be reduced, helping extend the effective service life of the media and reduce replacement and maintenance frequency.

Extensive Application Experience

Our activated carbon panel filters are suitable for commercial buildings, hospitals, pharmaceutical facilities, laboratories, electronics manufacturing, food processing, and industrial ventilation systems. Product configurations can be selected according to airflow rate, pollutant type, operating environment, and installation dimensions.

Optional Configurations

• Granular activated carbon

• Honeycomb activated carbon

• Activated carbon fiber media

• Impregnated activated carbon

• Aluminum alloy frame

• Galvanized steel frame

• Stainless steel frame

• Custom dimensions

• OEM branding

Why Choose Us?

Professional Air Filter Manufacturer

Specialized in air filtration and clean air solutions.

Strict Quality Control

Strict quality inspections are implemented from raw materials to finished products.

Extensive Industry Experience

Serving customers in healthcare, pharmaceutical, electronics, food processing, and industrial sectors.

Fast Response and Delivery

Fast delivery for standard products and customized production for project-specific requirements.

OEM/ODM Services

OEM and ODM services are available for global distributors, brands, equipment manufacturers, and engineering projects.

Frequently Asked Questions (FAQ)

What Does an Activated Carbon Panel Filter Remove?

It is mainly used to adsorb odors, smoke, volatile organic compounds (VOCs), and certain harmful gaseous contaminants from the air. For acidic, alkaline, or other specific chemical gases, suitable impregnated activated carbon can be selected according to the pollutant type to provide more targeted adsorption.

Can an Activated Carbon Filter Remove Dust?

The primary function of activated carbon is the adsorption of gaseous contaminants, so it should not be used as the main particulate filter. In practical air handling systems, a pre-filter or medium-efficiency filter is usually installed upstream. For environments requiring higher air cleanliness, it can also be combined with a HEPA filter to control both particulate and gaseous contaminants.

How Often Should Activated Carbon Be Replaced?

There is no universal fixed replacement interval. Actual service life depends on pollutant type and concentration, airflow rate, operating time, temperature and humidity, and the amount of activated carbon used. Adsorption performance should be checked regularly according to actual operating conditions. Replacement is recommended when odors reappear or the outlet pollutant concentration increases significantly.

Can the Filter Dimensions Be Customized?

Yes. Filter length, width, thickness, frame material, and activated carbon type can be customized according to the customer's air handling equipment and project requirements. Product configurations can also be selected according to design airflow, installation space, and operating conditions.

Do You Provide OEM Services?

Yes. OEM and ODM services are available for distributors, equipment manufacturers, and engineering projects. Dimensions, frame materials, filter media, packaging, and branding can be customized. Product configurations can also be developed according to specific technical requirements for bulk orders and special projects.

Get a Quote

Looking for a reliable activated carbon panel filter supplier?

Please provide the following information:

• Filter dimensions (L × W × H)

• Required activated carbon type

• Airflow requirements

• Application/industry

• Order quantity

Our engineers will provide product selection recommendations and a quotation within 12 hours.
