Product features:
The unique porous structure of polyurethane foam is matched with powdered activated carbon, which makes the contact area between activated carbon and adsorbed objects larger and the adsorption speed faster;
Honeycomb activated carbon filter has good stability and air permeability, and can be cut and folded arbitrarily according to different occasions. It has low wind resistance and has a wide range of applications;
It has both good adsorption performance and good dust collection effect, so it is often used as a filter material for various filters;
The unique processing technology developed professionally ensures that the adsorption performance of activated carbon is intact, and the bond with the base material is very strong, and the activated carbon is not easy to fall off and powder fall off during use.
Product application:
Mainly used in various air purifiers, air-conditioning fans, computer hosts, oil fume purification, etc.; it is also used in the daily life field, such as making activated carbon insoles, health care mattresses, pillow cores, refrigerator odor absorbing bags, etc., and has a good deodorizing effect.
Product parameters | PP-PCN | PP-PAA | PP-GAC | PP-PHD |

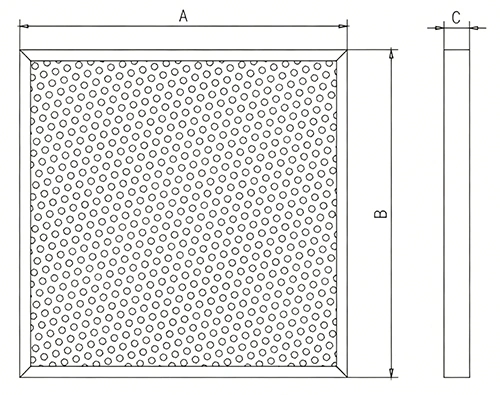

Standard nominal size (A*B*C mm) | 592x592×45 | 592x592×45 | 592x 592×45 | 592x592x45 |
Rated air volume (CMH) | 3400 | 3400 | 3400 | 3400 |
Resistance (Pa) | <160@2.54m/s | <160@2.54m/s | <160@2.54m/s | <160@2.54m/s |
Filter material area (m2) | 2.48 | 2.48 | 2.48 | |
Number of pleats | 53 | 53 | 53 | 53 |
Filter box material | Plated Zinc plate, aluminum, plastic | Galvanized plate, aluminum, plastic | Galvanized plate, aluminum, plastic | Galvanized plate, aluminum , plastic |
Target gaseous molecular pollutants | Acidic gaseous molecules (f-,ci-,nox,sox,h2S) | Alkaline gaseous molecules (NH3) | Condensable gaseous molecules (VOC) | Dopants (Boron, Phosphorus) |
It can effectively adsorb formaldehyde, toluene, ammonia, and other volatile organic gases.
Combines rapid adsorption with high dust-holding capacity and high-capacity adsorption performance.
The panel structure allows smooth airflow and reduces fan energy consumption.
Effectively improves air quality in indoor and production environments.
Suitable for air handling equipment with limited space.
The standardized design makes replacement and maintenance convenient.
Activated carbon with high adsorption capacity
Honeycomb/granular media options
VOC and odor removal
Low pressure drop design
Compact panel structure
Suitable for various HVAC systems
Customizable filling materials
OEM/ODM support
Used in fresh air units and air handling units in office buildings, shopping malls, and hotels to adsorb odors and specific gaseous pollutants. Selection requires confirmation of airflow, installation dimensions, and allowable pressure drop.
Suitable for ventilation systems in hospital public areas and auxiliary rooms. Select compatible carbon media based on target pollutants such as disinfectant odors, and verify airflow and maintenance requirements.
Used for odor treatment in auxiliary areas of pharmaceutical plants and some process exhaust systems. Selection requires information on pollutant composition, inlet concentration, treatment airflow, and operating time.
Can serve as an adsorption filtration stage in laboratory exhaust systems. First confirm the specific chemicals and their concentrations, then verify carbon media suitability and system airflow.
Used for odor control in ventilation systems in production and auxiliary areas. When purchasing, specify the odor source, air humidity, treatment airflow, and cleaning and maintenance requirements.
Can be used for adsorption filtration of low-concentration exhaust gas from spraying, printing, and similar processes. Configuration should be calculated based on VOC composition, concentration, airflow, and operating time.
High-quality activated carbon material with a large specific surface area and adsorption capacity.
The honeycomb structure is suitable for fast filtration with low resistance, while the granular structure is suitable for high-capacity adsorption.
Suitable for most AHUs and ventilation systems.
Effectively protects downstream equipment and extends the service life of the system.
Supports customization of carbon types, filling amounts, and structures.
Suitable for ventilation equipment with limits on installation thickness and system resistance. Selection requires verification of the target gas, treatment airflow, and required adsorption capacity.
Granular carbon and filling amount can be selected according to the target pollutants. When purchasing, confirm operating airflow, allowable pressure drop, and expected replacement cycle.
For multiple target gases, combinations of different adsorption materials can be evaluated. The specific configuration depends on pollutant composition and concentration.
Suitable for air handling units and filter frames with weight and installation requirements. Confirm external dimensions, thickness, and installation method before ordering.
Suitable for filter installation in conventional ventilation equipment. When purchasing, verify frame dimensions, installation direction, and site conditions.
Can be used in equipment with requirements for frame weight or material. Selection requires confirmation of operating temperature, installation structure, and project requirements.
Used in projects with explicit requirements for material flame-retardant performance. Confirm the required test standard and corresponding material documentation before purchasing.
Compatible carbon media can be evaluated for specific VOCs. Provide pollutant composition, concentration, temperature and humidity, and operating time to support selection.
Dimensions, frames, packaging, and brand markings can be customized to project requirements. When requesting a quotation, provide drawings, purchase quantity, and delivery requirements.
Focused on HVAC and gas filtration solutions.
Ensures adsorption performance and structural stability.
Serving customers in the healthcare, pharmaceutical, electronics, and industrial sectors.
Standard products are well stocked, with custom production available for projects.
Supports cooperation with global brands and engineering projects.
The honeycomb structure has lower resistance and is suitable for high-airflow systems; the granular structure has higher adsorption capacity and is suitable for environments with higher pollutant concentrations.
It mainly removes VOCs, odors, organic gases, and some harmful chemical gases.
Yes. It is widely used in fresh air systems and air handling units.
It depends on pollutant concentration and airflow. Regular replacement is generally required.
Yes. Materials, dimensions, and structures can be customized according to project requirements.
Looking for a reliable supplier of panel activated carbon (honeycomb/granular) filters?
Please provide the following information:
Filter dimensions (length × width × thickness): Provide the installation frame or old filter dimensions; drawings can be attached for non-standard projects.
Activated carbon type: Specify whether a honeycomb structure or granular filling is required; if unsure, provide the treatment requirements.
Airflow requirements: Provide the airflow of a single unit or the total system airflow, and specify the allowable pressure drop.
Target pollutants: Provide the specific names of the odors or gases; if testing has been performed, attach the inlet concentrations.
Application industry and operating conditions: Specify the installation location, operating hours, temperature and humidity, and whether operation is continuous.
Purchase quantity: Provide the quantity for this purchase and indicate whether regular replacement or bulk supply will be needed later.
Our engineers will provide selection recommendations and a quotation within 12 hours.
