V-Bank Air Filter

Product features: high strength, reliable, resistant to airflow impact; resistant to water mist and harsh environments; made of high-quality filter paper, stable performance, easy to install; produced in a Class 10,000 clean factory with no volatile dust; low energy consumption during production and use, in line with low-carbon environmental protection requirements.

Reinforced structure: When the equipment is not operating normally, sudden "surges" may occur, or the climate environment is severe, such as ice rain, heavy fog, etc. We have specially adopted an enhanced structure and special technology so that the filter can not be damaged under a pressure of 1300Pa, and will not fall apart when the air pressure is below 3000Pa. This is very important to ensure the safe operation of aerodynamic equipment.

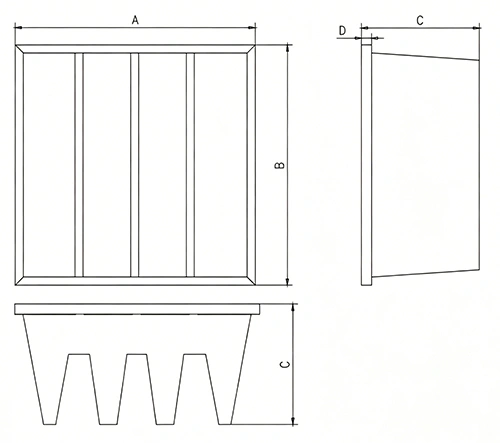

Dimensional diagram:

Why Choose Mini-Pleat V-Bank Filters

• Larger Filtration Area

  The V-bank structure makes full use of the available filtration space, providing a larger effective filtration area within the same installation dimensions.

• High Airflow Capacity

  Suitable for high-airflow air treatment systems, meeting the performance requirements of modern HVAC equipment.

• Low Pressure Drop

  Optimized airflow channels reduce system resistance and fan energy consumption.

• High Dust-Holding Capacity

  The large filter media area provides greater dust-holding capacity and a longer service interval.

• HEPA Filter Protection

  Used as a prefilter for HEPA filters to help extend their service life.

• Lower Operating Costs

  Reduces filter replacement frequency and system operating energy consumption.

Key Features

• V-bank structure

• High airflow capacity

• Low operating resistance

• Large filtration area

• High dust-holding capacity

• Stable and reliable operation

• Long service life

• OEM/ODM customization available

Typical Applications

• Pharmaceutical Industry

  Used in the intermediate filtration stage of pharmaceutical AHUs and cleanroom air conditioning systems to reduce downstream HEPA particle loading. Confirm efficiency, airflow, and allowable pressure drop according to project requirements.

• Hospitals and Healthcare Facilities

  Can be used for intermediate filtration in hospital central air conditioning and operating room air conditioning systems. Determine filter classes and combinations according to area design requirements, and verify installation sealing conditions.

• Electronics and Semiconductor Industries

  Used for fresh or recirculated air filtration in electronics assembly areas and cleanrooms. Confirm specifications according to particle control targets, downstream filtration, and continuous operating airflow.

• Data Centers

  Used for particulate filtration in data center ventilation and air conditioning systems. Verify equipment airflow, available fan static pressure, maintenance space, and site dust conditions.

• Commercial Buildings

  Suitable for AHU filtration in offices, airports, shopping centers, and public buildings. For replacements, verify existing filter dimensions, installation depth, and actual operating airflow.

• Food and Beverage Industry

  Used for particulate filtration in air conditioning systems serving production and packaging areas. Confirm media and frame configurations according to area requirements, air humidity, and cleaning and maintenance conditions.

Product Advantages

• Replacement for Conventional Pocket Filters

  Can serve as a high-performance upgrade in many HVAC systems.

• Lower Operating Costs

  The low-pressure-drop design reduces fan energy consumption and long-term operating costs.

• Longer Service Life

  High dust-holding capacity extends filter replacement intervals.

• High Reliability

  Quality filter media and a robust structure ensure stable long-term operation.

• Flexible Customization

  Custom dimensions, efficiency classes, and frame materials are available.

Available Configurations

• F7/F8/F9 Filter Classes

  Select according to project efficiency requirements and specify the applicable test standard. For ISO 16890, confirm classification and test data separately rather than using direct conversions.

• MERV 13/14/15 Filter Ratings

  Confirm the required MERV rating and corresponding test report. Verify rated airflow and pressure drop when purchasing; do not replace existing filters based on rating alone.

• ABS Frame

  Suitable for equipment projects specifying plastic frames. Confirm operating temperature, frame strength, dimensional tolerances, and project flame-retardancy requirements.

• Metal Frame

  Select the metal material according to installation and environmental requirements. Verify corrosion resistance, frame thickness, fastening methods, and sealing compatibility.

• High-Temperature Construction

  For elevated-temperature applications, confirm the temperature limits of the media, adhesive, seals, and frame. Provide both continuous and short-term operating temperatures.

• Custom Dimensions

  Determine external dimensions according to the unit opening, guide rails, and installation depth. When replacing pocket filters, also verify mounting structures, airflow direction, and sealing methods.

• OEM Branding

  Custom dimensions, labels, packaging, and brand identification are available. Provide technical requirements, purchase quantities, and delivery schedules when requesting a quotation to confirm the production plan.

Our Advantages

• Professional Air Filter Manufacturer

  Focused on HVAC air filtration and clean air solutions.

• Strict Quality Control

  Products undergo efficiency, pressure drop, and structural performance testing.

• Extensive Project Experience

  Serving pharmaceutical, healthcare, electronics, data center, and industrial customers.

• Fast Delivery

  Supporting prompt shipment of standard specifications and customized production for projects.

• OEM/ODM Services

  Meeting procurement needs for distributors, brand owners, and engineering projects worldwide.

Frequently Asked Questions (FAQ)

• What Is the Difference Between V-Bank Filters and Pocket Filters?

  V-bank filters provide a larger filtration area, lower operating resistance, and higher airflow capacity, making them particularly suitable for large HVAC systems.

• Where Are V-Bank Filters Usually Installed?

  They are typically installed at the final filtration stage of air handling units (AHUs), serving as prefilters for HEPA filters.

• Which Industries Are They Suitable For?

  They are widely used in pharmaceuticals, hospitals, electronics, data centers, food processing, and commercial buildings.

• Can They Replace Conventional Pocket Filters?

  They can serve as an upgrade in many projects to achieve a lower pressure drop and longer service life.

• Are OEM Services Available?

  Yes. Both OEM and ODM cooperation are supported.

Request a Quote

Looking for mini-pleat V-bank filters for AHUs, HVAC systems, or cleanroom air conditioning systems?

Please provide the following information for selection and quotation:

• Filter dimensions: Provide external frame length × width × depth, installation opening dimensions, and fastening methods. For replacements, attach photos or drawings of the existing filter.

• Filtration efficiency: Specify the required F7/F8/F9 class or MERV rating, applicable test standard, and test documentation requirements.

• Airflow and pressure drop: Provide design airflow per filter, allowable initial pressure drop, and the project-specified final pressure drop.

• Operating conditions: Specify the industry, installation location, dust sources, temperature, humidity, operating hours, and upstream and downstream filtration.

• Replacement requirements: If replacing pocket filters, provide existing product specifications, operating differential pressure, and available installation space.

• Purchase quantity: Provide the current quantity, sample requirements, future replacement plans, and delivery requirements.

Our engineers will provide professional selection recommendations and a quotation within 12 hours.
